| Mfr. |
|---|
| Display Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| View Direction |
| Display Colors |
| Shape Style |
| Frequency |
| PANDA |
| 15.6" |
| 1920(RGB)×1080, FHD, 16:9 |
| 344.16(W)×193.59(H) mm |
| 350.66(W)×216.15(H)×3.2(D) mm |
| 250 cd/m² (Typ.) |
89/89/89/89 (Typ.)(CR≥10)  |
| Symmetry |
| 262K, 45% NTSC |
| Slim (PCBA Flat, T≤3.2mm) |
| 120Hz |
| Model Name |
| Panel Type |
| Dot Layout |
| Panel Weight |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Touch Screen |
| Light Source |
| Application |
| LM156LFGL02 |
| Oxide TFT-LCD, LCM |
| RGB Vertical Stripe |
| 360g (Max.) |
| - |
| 1000:1 (Typ.) (TM) |
| FFS, Normally Black, Transmissive |
| 25 (Typ.)(Tr+Td) mm |
| Without |
| WLED, 15K hrs, With LED Driver |
| |
| Interface | eDP (2 Lanes), eDP1.4 Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp. 0 ~ 50 °C ;Storage Temp. -20 ~ 60 °C |
| No datasheet. Upload LM156LFGL02 Datasheet |
| Application | Maker's Rank | MURA | General Grade | Version | Issue Date | |
 LM156LF**** |
VIP | VIP | A Grade | Rev.B | 2018-7-16 | Paid Download |
| LM156LF**** |
VIP | VIP | B Grade | Rev.B | 2018-7-16 | Paid Download |
| LM156LF**** |
VIP | VIP | B Grade | Rev.B | 2018-7-16 | Paid Download |

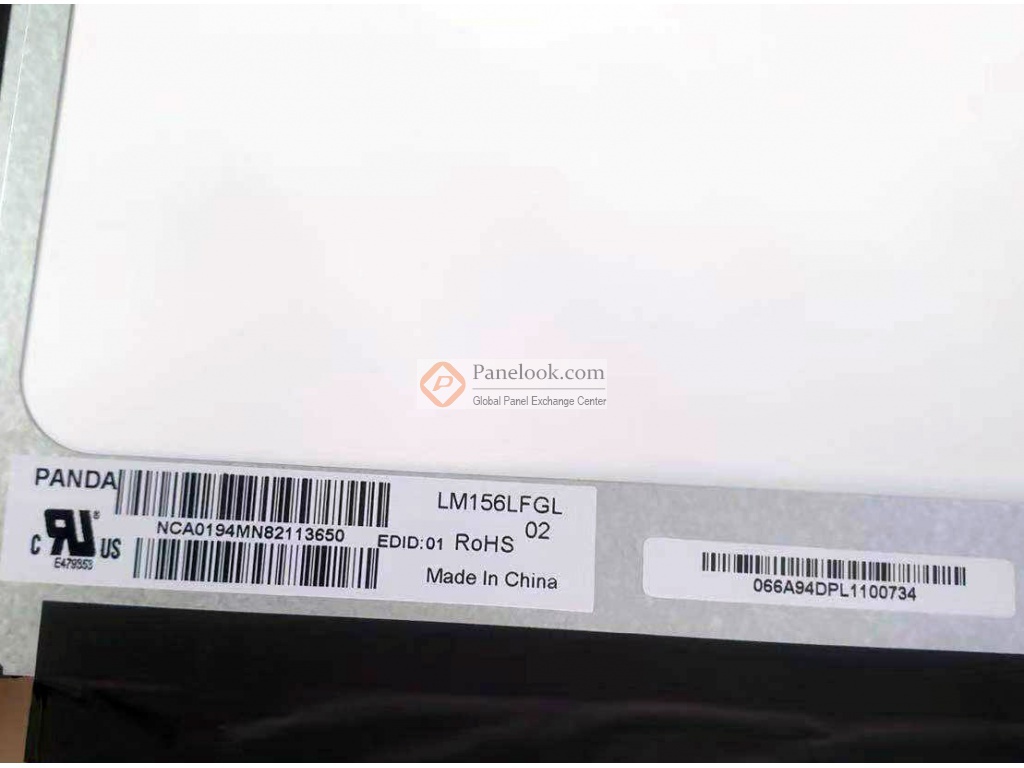

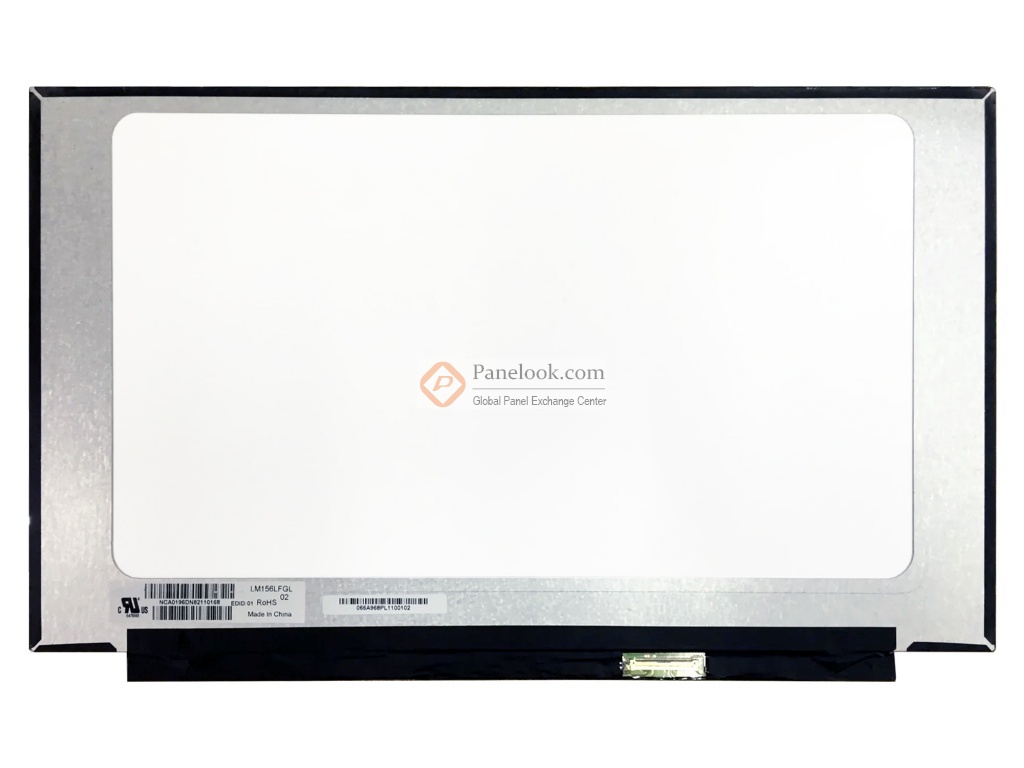

LM156LFGL02 (Product Code: NCP0042) is a 15.6" diagonal Oxide TFT-LCD display panel product from Nanjing CEC Panda LCD Technology Co., Ltd. (hereafter called PANDA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: 120Hz, WLED Backlight, With LED Driver, Reverse I/F , eDP1.4. Based on its features, Panelook recommend that this model be applied to Laptop, Gaming etc. Now this model is discontinued. There are 0 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Mar 25 2020 for the first time, and the latest update on Aug 26 2024. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with PANDA or it's agent to learn lateast production and specification detail of LM156LFGL02. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. The above parameters are not from the datasheet, only as a reference, please use with caution!
