| Brand |
|---|
| Diagonal Size |
| Pixel Number |
| Active Area |
| Mass |
| Luminance |
| View Direction |
| Viewing Angle |
| Support Color |
| Form Style |
| Frame Rate |
| PANDA |
| 15.6 inch |
| 1920(RGB)×1080, FHD, 16:9 |
| 344.16(H)×193.59(V) mm |
| 360g (Max.) |
| 250 cd/m² (Typ.) |
| Symmetry |
85/85/85/85 (Typ.)(CR≥10)  |
| 16.7M, 45% NTSC |
| Slim (PCBA Flat, T≤3.2mm) |
| 120Hz |
| Model |
| Type |
| Dot Layout |
| Physical Size |
| Surface Coating |
| Contrast Ratio |
| Response Time |
| Operating Mode |
| Designed For |
| Light Source |
| Touch Panel |

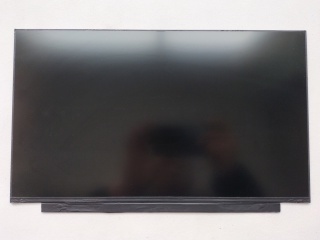

| LM156LFGL03 |
| Oxide TFT-LCD, LCM |
| RGB Vertical Stripe |
| 350.66(H)×216.245(V)×3.2(D) mm |
| Antiglare, Hard coating (3H) |
| 1000:1 (Typ.) (TM) |
| 25 (Typ.)(Tr+Td) mm |
|
FFS, Normally Black, Transmissive |
| |
| WLED, 15K hrs, With LED Driver, DC |
| Without |

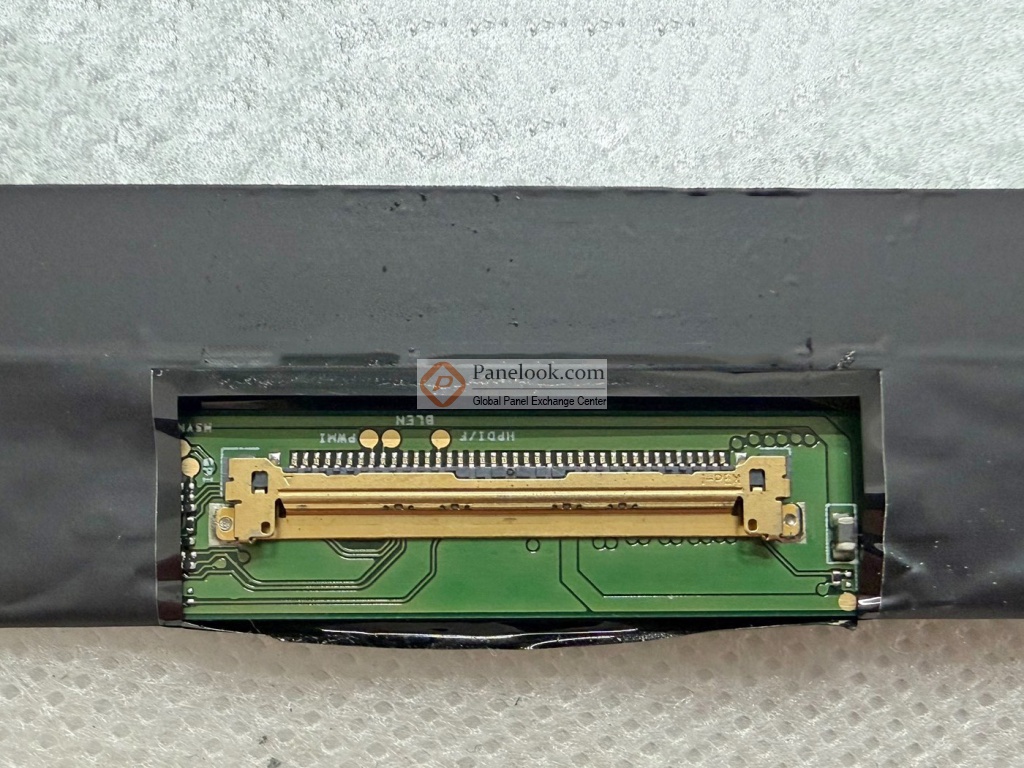

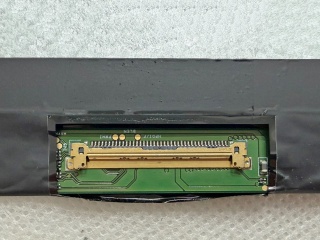

| Interface Type | eDP (4 Lanes), eDP1.4, HBR1 (2.7G/lane), 40 pins Connector |
|---|---|
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C |
| Datasheet | Version | Language | Issue Date | File Size | Pages | Latest | |
|---|---|---|---|---|---|---|---|
 LM156LFGL03.pdf |
20190425 | English | 2019-4-25 | 1.5 M | 24 | Latest |
| Application | Maker's Rank | MURA | General Grade | Version | Issue Date | |
| LM156LF**** |
VIP | VIP | A Grade | Rev.B | 2018-7-16 | Paid Download |
| LM156LF**** |
VIP | VIP | B Grade | Rev.B | 2018-7-16 | Paid Download |
| LM156LF**** |
VIP | VIP | B Grade | Rev.B | 2018-7-16 | Paid Download |

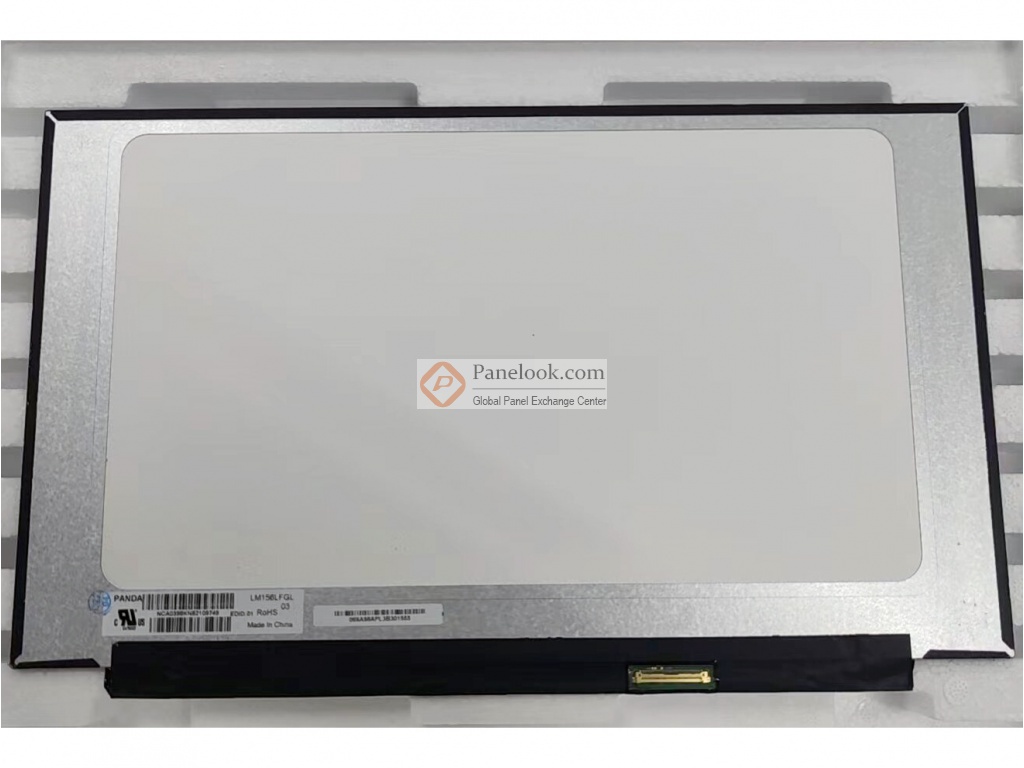

LM156LFGL03 (Product Code: NCP0036) is a 15.6" diagonal Oxide TFT-LCD display panel product from Nanjing CEC Panda LCD Technology Co., Ltd. (hereafter called PANDA), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: 120Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.4, SDRRS, SSC, PSR2, LED DC Dimming. Based on its features, Panelook recommend that this model be applied to Laptop, Gaming etc. According to the information stored in Panelook this model mass production on Q3, 2019 and last shippment on Q1, 2023, Now this model is discontinued. There are 0 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Mar 25 2020 for the first time, and the latest update on Jan 23 2026. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with PANDA or it's agent to learn lateast production and specification detail of LM156LFGL03. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but mistakes maybe made during inputting.
