LM240WU8-SLD1

Alias: LM240WU8 (SL)(D1)

sRGB, WLED Backlight, Upside I/F, Matte
Overview Specs Stocks Suppliers Touch Panels OEM/ODM RFQs Driver Kits
View: 41806

LG Display LM240WU8-SLD1 General Features

  • LM240WU8-SLD1
  • LM240WU8-SLD1
  • LM240WU8-SLD1
  • Innolux Laptop Screen
    • sRGB
    • WLED Backlight
    • Upside I/F
    • Matte
    Manufacturer LG Display Model No. LM240WU8-SLD1
    Screen Size 24.0 inch Screen Type a-Si TFT-LCD, LCM
    Number of dots 1920(RGB)×1200, 16:10, WUXGA Pixel Format RGB Vertical Stripe
    Active Area 518.4×324 mm (H×V) Outline Area 546.4×352×12.2 mm (H×V×D)
    Weight 2.62/2.75Kgs (Typ./Max.) Surface Feature Antiglare, Hard coating (3H)
    Luminance 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Response (ms) 14 (Typ.)(G to G)
    Good View at Symmetry Display Type IPS, Normally Black, Transmissive
    Dispaly Colors 16.7M, 100% sRGB Used for
    Total Power 16.06W (Typ.) Backlight 13S3P WLED, 30K hrs, No Driver
    Refresh Rate 60Hz Touchscreen Without
    Signal Type LVDS (2 ch, 8-bit), 30 pins Connector
    Voltage Supply 12.0V (Typ.)
    Max. Ratings Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C

    LG Display LM240WU8-SLD1 Datasheets Download

    Datasheet Version Language Issue Date File Size Pages Latest
     LM240WU8-SLD1.pdf Ver1.1 English 2013-1-22 1.1 M 32  Latest
     LM240WU8-SLD1.pdf Ver0.1 English 2012-9-4 1.3 M 32
     LM240WU8-SLD1.pdf Ver0.0 English 2012-4-27 944.5 K 32
     LM240WU8-SLD1.pdf Ver1.0 English 2012-10-16 956.6 K 32

    LG Display LM240WU8-SLD1 Inspection Standard (IIS) Download

    Application Maker's Rank MURA General Grade Version Issue Date
    MNT Series VIP VIP A- Grade Ver1.0 2014-1-14 Paid Download
    MNT Series VIP VIP A Grade Ver1.1 2013-8-2 Paid Download
    MNT Series VIP VIP A Grade Ver1.0 2012-6-6 Paid Download
    MNT Series VIP VIP A Grade Ver1.0 2012-3-28 Paid Download
    LM(Monitor) Series VIP VIP A- Grade Ver1.0 2008-6-11 Paid Download
    LM(Monitor) Series VIP VIP A Grade Ver1.0 2008-6-11 Paid Download
    LM(Monitor) Series VIP VIP A- Grade Ver1.0 2008-6-11 Paid Download
    LM(Monitor) Series VIP VIP A Grade Ver1.0 2008-6-11 Paid Download
    LM(Monitor) Series VIP VIP A- Grade Rev1.0 2008-6-11 Paid Download

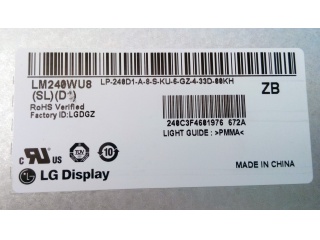

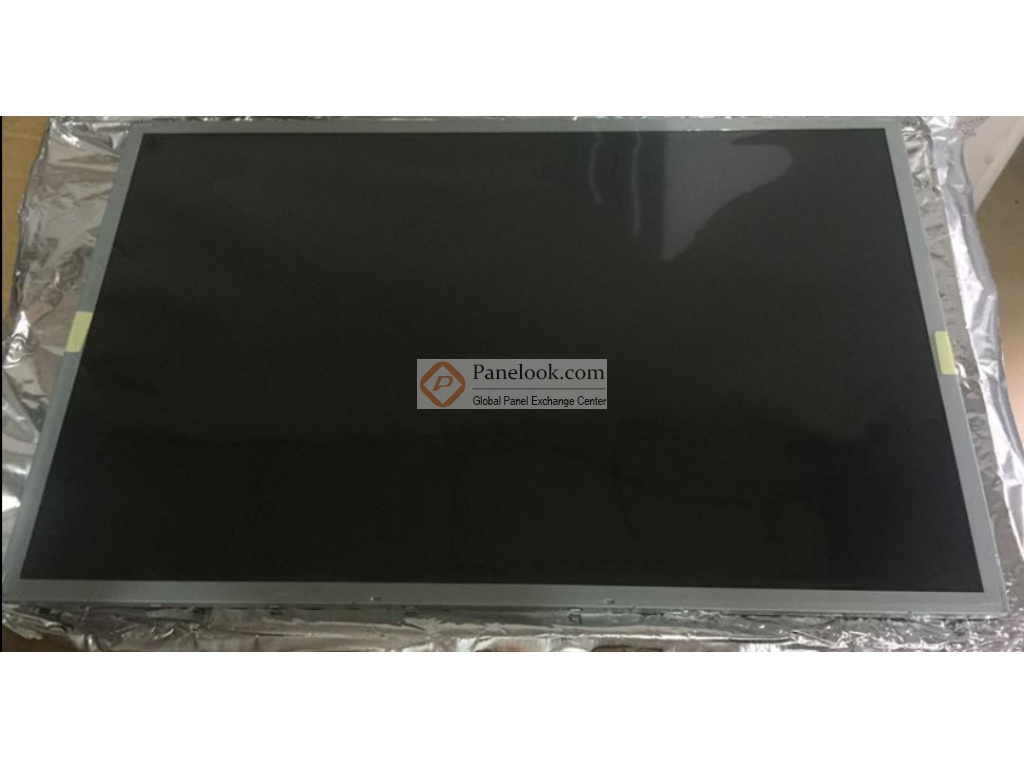

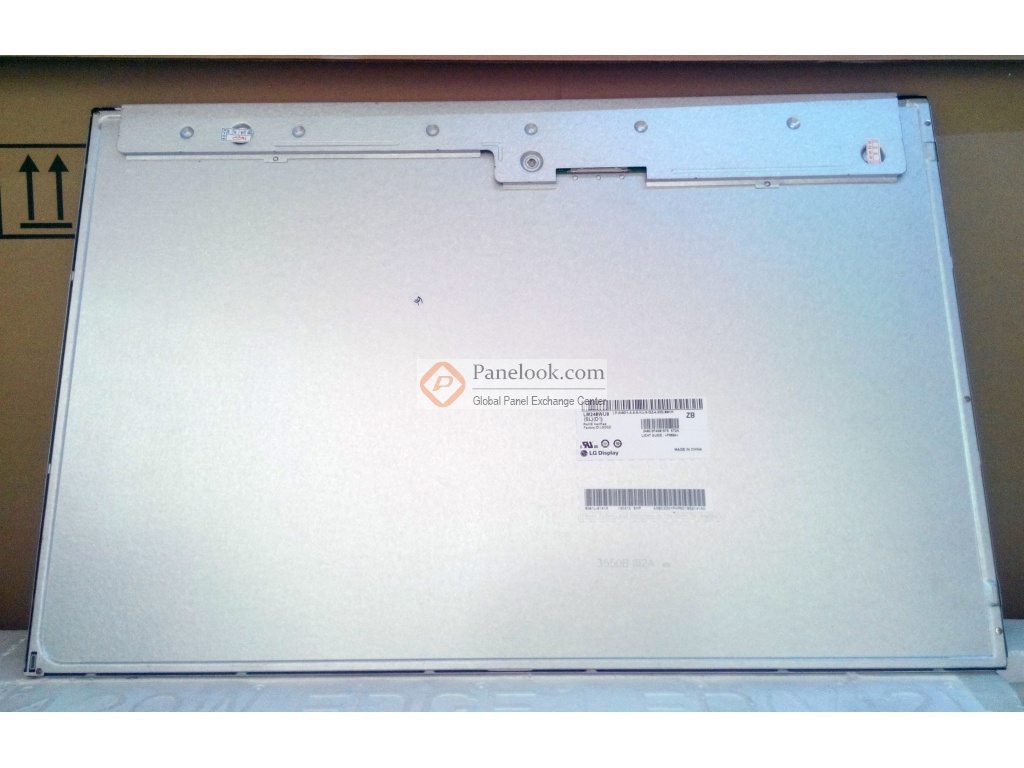

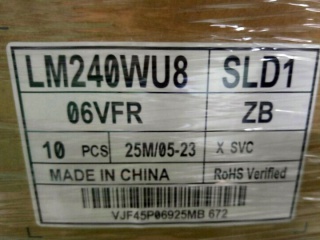

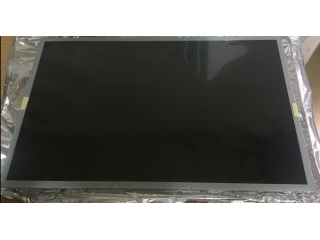

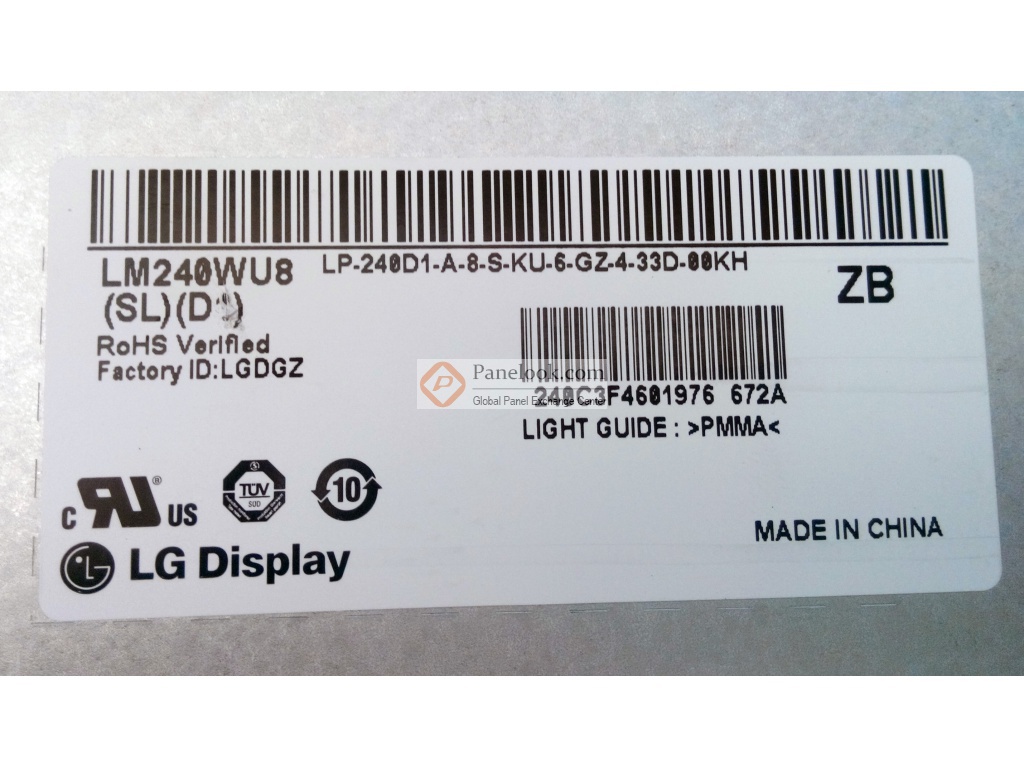

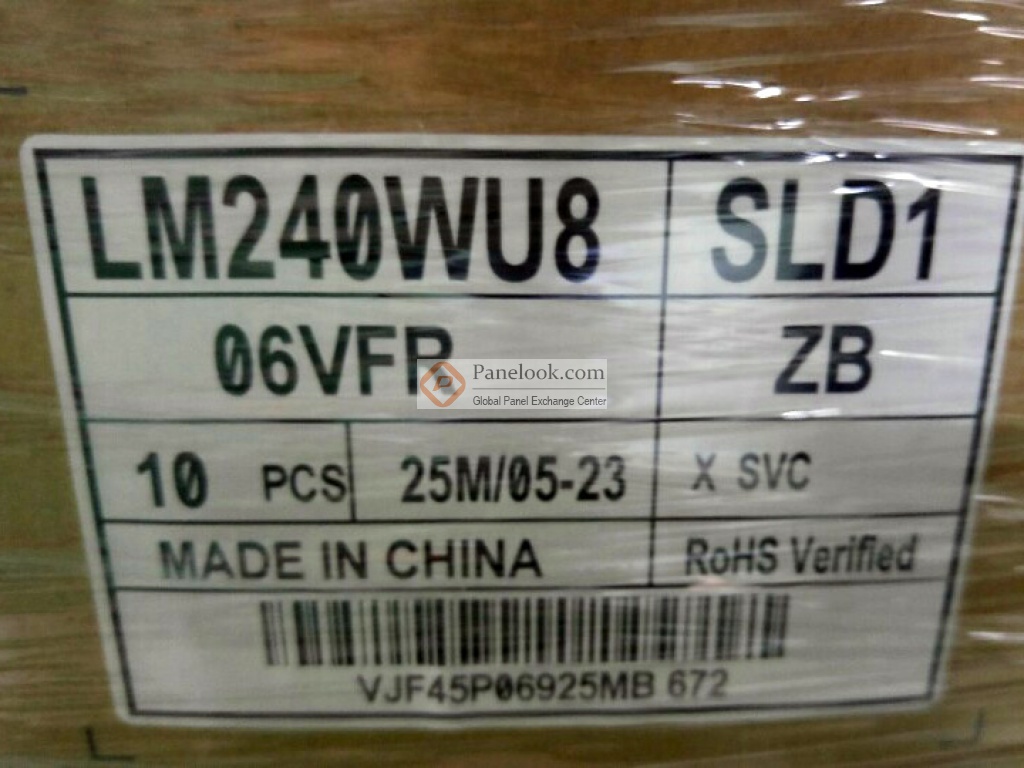

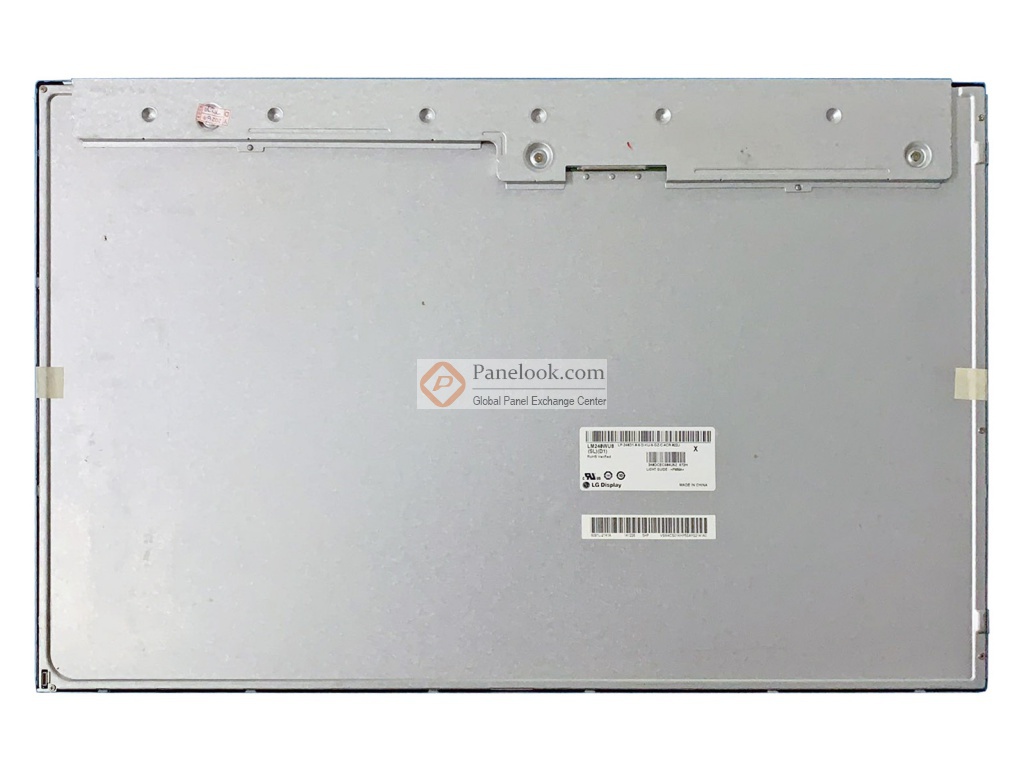

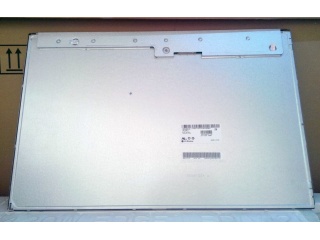

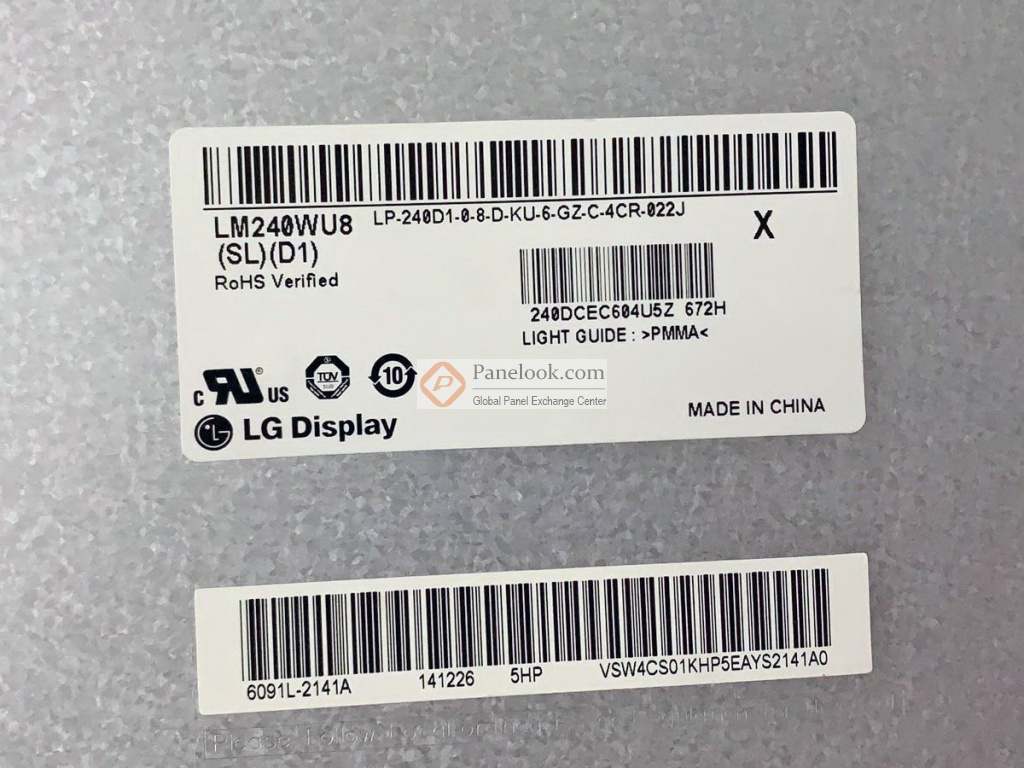

    LG Display LM240WU8-SLD1 Photos

    • LG Display LM240WU8-SLD1 photos
    • LG Display LM240WU8-SLD1 photos
    • LG Display LM240WU8-SLD1 photos
    • LG Display LM240WU8-SLD1 photos
    • LG Display LM240WU8-SLD1 photos
    • LG Display LM240WU8-SLD1 photos

    LG Display LM240WU8-SLD1 Overview

    LG Display Co., Ltd. (hereafter called LG Display) LM240WU8-SLD1 (Alias: LM240WU8 (SL)(D1)) is a 24.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: sRGB, WLED Backlight, Upside I/F, Matte . Based on its features, Panelook recommend that this model be applied to Desktop Monitor etc. According to the information stored in Panelook this model mass production on Q2, 2012 and last shippment on Q2, 2016, Now this model is discontinued. There are 3 items stock and 0 suppliers of this model on Panelook. We inputted this model's specification on Mar 1 2013 for the first time, and the latest update on Nov 5 2024. If you want to embed LM240WU8-SLD1 LCM in your future product, Panelook strongly recommend that you should contact with LG Display or it's distributor to learn lateast production and specification detail. The LM240WU8-SLD1 production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
