| Mfr. | Innolux | Model Name | N160JCA-EEL |
|---|---|---|---|
| Display Size | 16.0" | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1200, 16:10, WUXGA | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.68(W)×215.42(H) mm | Panel Weight | 395/405g (Typ./Max.) |
| Outline Size | 349.68(W)×224.52(H)×5.3(D) mm | Surface | Antiglare, Hard coating (3H) |
| Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)  |
Display Mode | AAS, Normally Black, Transmissive |
| View Direction | Symmetry | Response Time | 11/9 (Typ.)(Tr/Td) mm |
| Display Colors | 16.7M, 45% NTSC | Application | |
| Frequency | 60Hz, AMD FreeSync | Touch Screen | Without |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) | Light Source | 10S6P WLED, 15K hrs, With LED Driver, DC |
| Interface | eDP (2 Lanes), eDP1.2, 30 pins Connector | ||
| Input Voltage | 3.3V (Typ.) | ||
| Environment | Operating Temp. 0 ~ 50 °C, Storage Temp. -20 ~ 60 °C | ||
Shenzhen
Shenzhen
Shenzhen
Shenzhen
Shenzhen
Shanghai
Shenzhen
Shenzhen
Shenzhen
Shenzhen
| Datasheet | Version | Language | Issue Date | File Size | Pages | Latest | |
|---|---|---|---|---|---|---|---|
 N160JCA-EEL.pdf |
Rev.C1_Ver1.0 | English | 2021-3-21 | 2.8 M | 46 | Latest |
| Application | Maker's Rank | MURA | General Grade | Version | Issue Date | |
| Notebook Series |
VIP | VIP | B Grade | Ver1.0A | 2014-12-3 | Paid Download |
| ALL Notebook series |
VIP | VIP | A+ Grade | Ver1.0A | 2012-1-3 | Paid Download |
| ALL Notebook series |
VIP | VIP | A Grade | Ver1.0A | 2012-1-3 | Paid Download |
| ALL Notebook series |
VIP | VIP | A- Grade | Ver1.0A | 2011-1-3 | Paid Download |

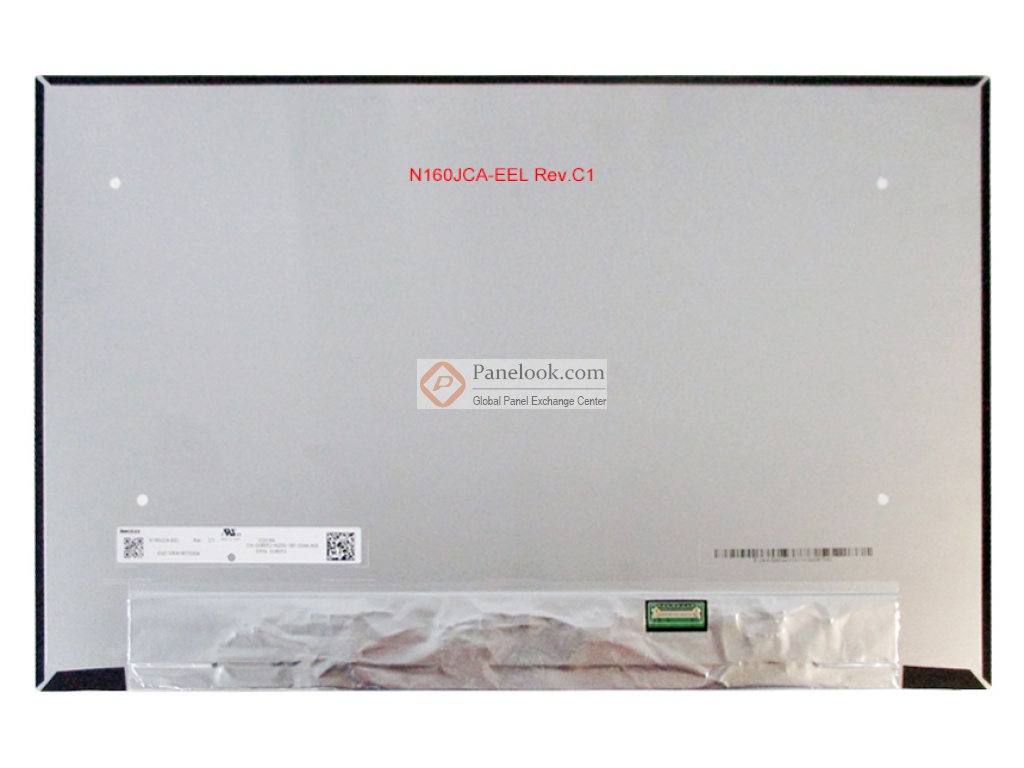

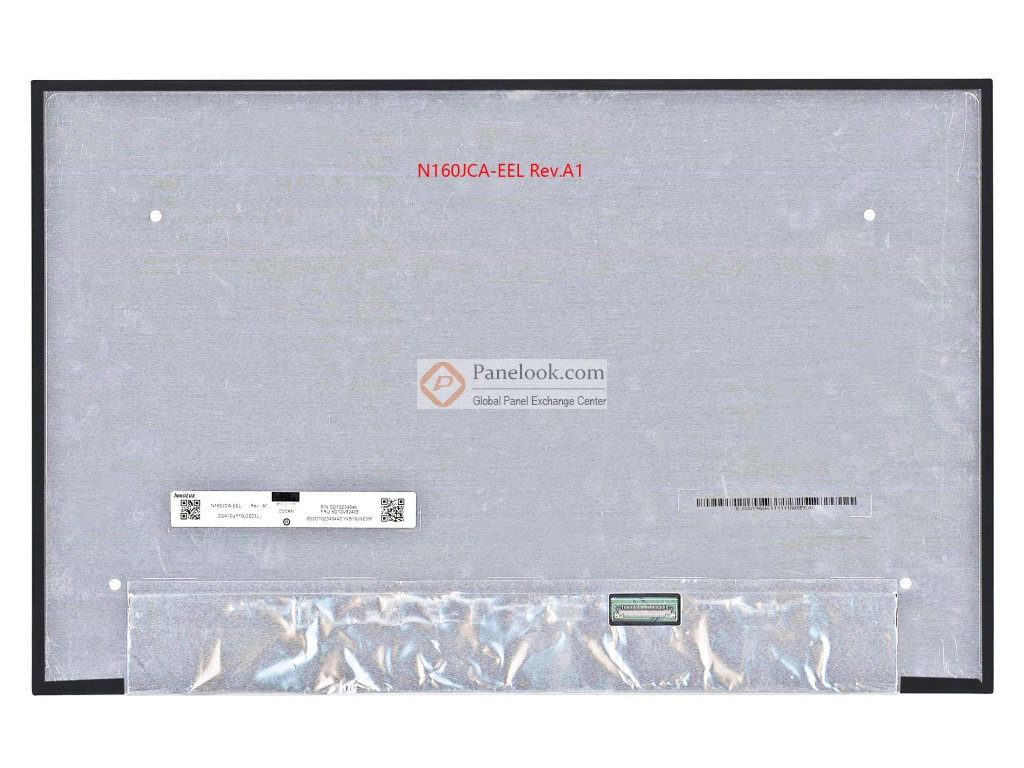

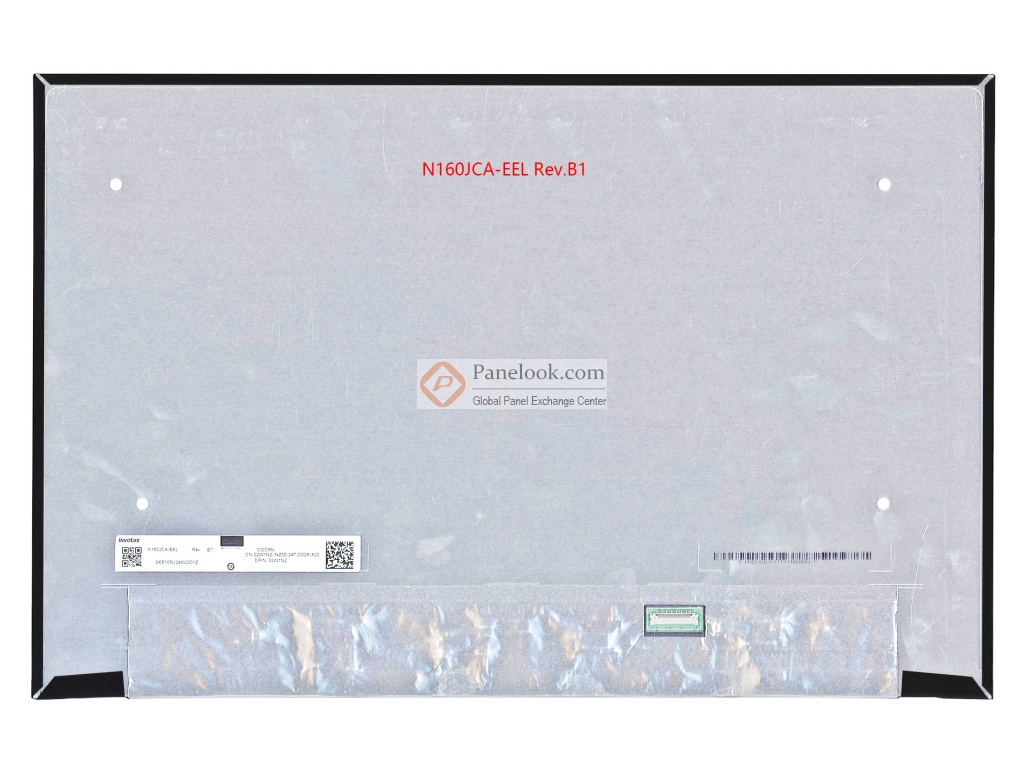

Innolux Corporation (hereafter called Innolux) N160JCA-EEL (Product Code: CMN1614) is a 16.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: WLED Backlight, With LED Driver, Reverse I/F, Matte, AMD FreeSync , eDP1.2, Free-sync, LED DC dimming. Rev.A1/C1 0.5mm pitch 20455-030E, Rev.B1 0.4mm pitch 20696-030E.. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in Panelook this model mass production on Q4, 2021, Now this model is in production. There are 16 items stock and 13 suppliers of this model on Panelook. We inputted this model's specification on Nov 17 2021 for the first time, and the latest update on Aug 4 2023. If you want to embed N160JCA-EEL LCM in your future product, Panelook strongly recommend that you should contact with Innolux or it's distributor to learn lateast production and specification detail. The N160JCA-EEL production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is right.
