| Mfr. |
|---|
| Display Size |
| Resolution |
| Display Area |
| Outline Size |
| Brightness |
| Viewing Angle |
| View Direction |
| Display Colors |
| Shape Style |
| Frequency |
| BOE |
| 15.6" |
| 1920(RGB)×1080, FHD, 16:9 |
| 344.16(W)×193.59(H) mm |
| 350.66(W)×216.25(H)×2.6(D) mm |
| 300 cd/m² (Typ.) |
85/85/85/85 (Typ.)(CR≥10)  |
| Symmetry |
| 262K, 98% sRGB |
| Slim (PCBA Flat, T≤3.2mm) |
| 60Hz |
| Model Name |
| Panel Type |
| Dot Layout |
| Panel Weight |
| Surface |
| Contrast Ratio |
| Display Mode |
| Response Time |
| Touch Screen |
| Light Source |
| Application |
| NV156FHM-N6D |
| a-Si TFT-LCD, LCM |
| RGB Vertical Stripe |
| 310g (Max.) |
| Antiglare, Hard coating (3H) |
| 1000:1 (Typ.) (TM) |
| HADS, Normally Black, Transmissive |
| 20 (Typ.)(Tr+Td) mm |
| Without |
| 10S5P WLED, 15K hrs, With LED Driver |
| |
| Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector |
|---|---|
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp. 0 ~ 50 °C ;Storage Temp. -20 ~ 60 °C |
Shenzhen
Shenzhen
Shenzhen
Shenzhen
Shenzhen
| Datasheet | Version | Language | Issue Date | File Size | Pages | Latest | |
|---|---|---|---|---|---|---|---|
 NV156FHM-N6D.pdf |
V8.0_Rev.0 | English | 2021-3-9 | 2.4 M | 64 | Latest |
| Application | Maker's Rank | MURA | General Grade | Version | Issue Date | |
| 15.6 HD FHD |
VIP | VIP | A Grade | Rev.O | 2019-9-29 | Paid Download |
| 15.6 HD FHD |
VIP | VIP | B Grade | Rev.O | 2016-8-23 | Paid Download |
| 15.6 HD FHD |
VIP | VIP | A Grade | Rev.O | 2016-8-23 | Paid Download |
| 15.6 HD FHD |
VIP | VIP | A+ Grade | Rev.O | 2014-5-13 | Paid Download |
| 15.6 HD FHD |
VIP | VIP | A Grade | Rev.O | 2014-5-13 | Paid Download |

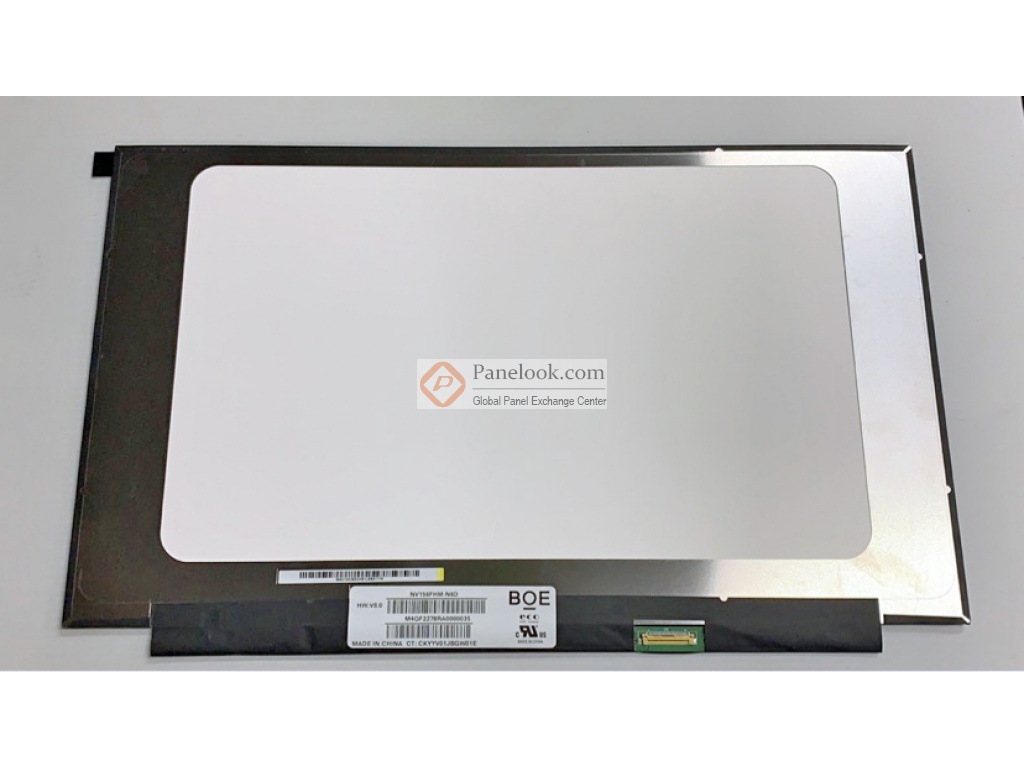

NV156FHM-N6D (Product Code: BOE09BB) is a 15.6" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized by Panelook in the following: sRGB, WLED Backlight, With LED Driver, Reverse I/F, Matte , eDP1.2. Based on its features, Panelook recommend that this model be applied to Laptop etc. According to the information stored in Panelook this model mass production on Q4, 2021, Now this model is in production. There are 11 items stock and 10 suppliers of this model on Panelook. We inputted this model's specification on Jul 4 2022 for the first time, and the latest update on Dec 20 2025. If you want to embed the LCM in your future product, Panelook strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of NV156FHM-N6D. The production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but mistakes maybe made during inputting.
